Aluminium Formwork Components

Wall Panel

SIZE- 2400X600 MM

Wall panel used at wall of structure to support and casting.

Slab Panel

SIZE- 1200X600 MM

The slab panel will be used to support the concrete slab weight during pouring and casting.

Deck Prop Head

SIZE- 100X200 MM

Dependent upon each structure used to join the bean together (middle beam and end beam) the pipes support will be placed under the prop head.

External Soffit Corner

It forms the external corner between the components.

Kicker

It forms the wall face at the top of the panels and acts as a ledge to support.

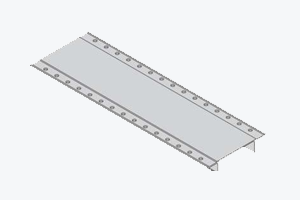

Beam bottom slab panel

Dependent upon each structure soffit panel will be used to cover the bottom of the slab panel.

Deck Mid–Beam

Dependent upon each structure used to join prop heads, the middle beam support the slab panels.

Wall Corner

Wall corners (both internal and external) help in maintaining perfect 90° angles at junctions where two walls meet.

Internal Soffit Corner

It forms the vertical internal corner between the walls and the beams, slabs, and the horizontal internal cornice between the walls and the beam slabs and the beam soffit.

Aluminium Formwork Accessories

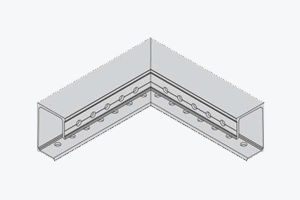

External Corner

It forms the external corner of the formwork system.

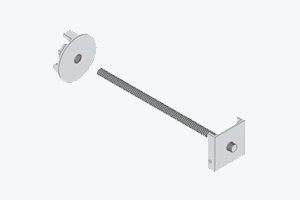

Tie-rod

Dependent upon each structure the accessory will be used as an embedded anchor in order to fix the bracket on the concrete surface during its installation.

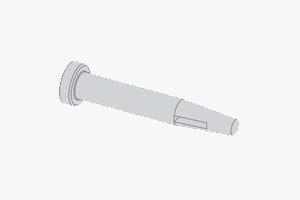

Long pin

Dependent upon each long Pin will be used to fix the joint pin soldier tie (ST) with the prop head and beams (middle beam or end beam together.

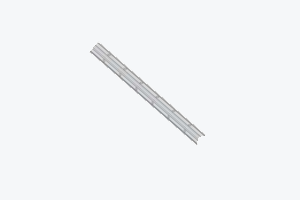

Deck Beam Bar

It is the deck for the beam. This component supports the deck and beam.

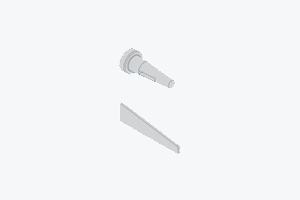

Stub pin and wedge

It helps in joining two wall panels. It helps in joining two joints.

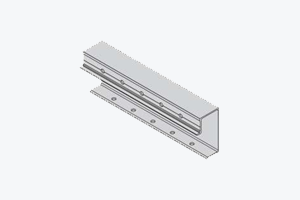

Soffit Length

It provides support to the edge of the deck panels at their perimeter of the room.

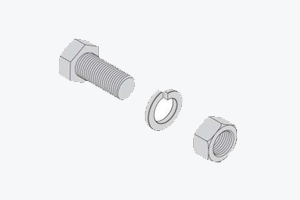

Bolts nuts and washers

Dependent upon each structure this set of accessories will be used as an embedded anchor in order to fix panel on the concrete surface during its installation.

Soldier Tie

Soldier Tie is a critical component used to ensure structural integrity and alignment during concrete pouring.

Waller Bracket

Waller Bracket is an essential supporting component used to hold and align vertical and horizontal structural elements. It plays a key role in stabilizing the system, especially in external walls and slab edges.
